Sullair Oil-Free Scroll Compressor
OIL FREE AIR RELIABLY, EFFICIENTLY AND QUIETLY
Built on Hitachi engineering, the SRL Series represents advanced scroll compressor technology to meet your oil free compressed air needs — today and tomorrow.
Maximizing efficiency means more than just having an efficient air compressor. All SRL Series compressors feature built-in logic to help utilize the air compressors most efficiently — which not only saves wear and tear on the compressor, but also provides energy savings — which saves you money!
- Certified Class 0 Oil Free Air
- SRL Exclusive Scroll and Pump Design
- Integrated Design for Maximum User Benefits
- Quiet Operation — as low as 48 dB(A)
SRL Series
SRL Exclusive Scroll and Pump Design
- Patented scroll wrap design with labyrinth seal provides superior performance and reliability
- Proprietary tip seal reduces air leakage while extending service intervals
- Normal maintenance can be completed without disassembling the pump
Integrated Design for Maximum User Benefits
- Certified Class 0 oil free air
- Highly efficient cooling
- Multi-stage cooling reduces ambient temperature out
- The receiver tank helps dissipate heat while reducing compressor starts/stops
- Air pressures to 145 psig
- Extremely quiet
- Sound levels as low as 48 dB(A)
- Full enclosure standard
- Mechanical and electrical vibration isolation
- Designed to be placed at point of air need
- Compact design reduces floor space needed
- Maintenance friendly
- Easy accessibility for inspection and maintenance
Flow
5.7 - 129.3 cfm
0.116 - 3.66 m³/min
Pressure
120 - 145 psi
8.3 - 10 bar
Power
2 - 44 hp
1.5 - 33 kW

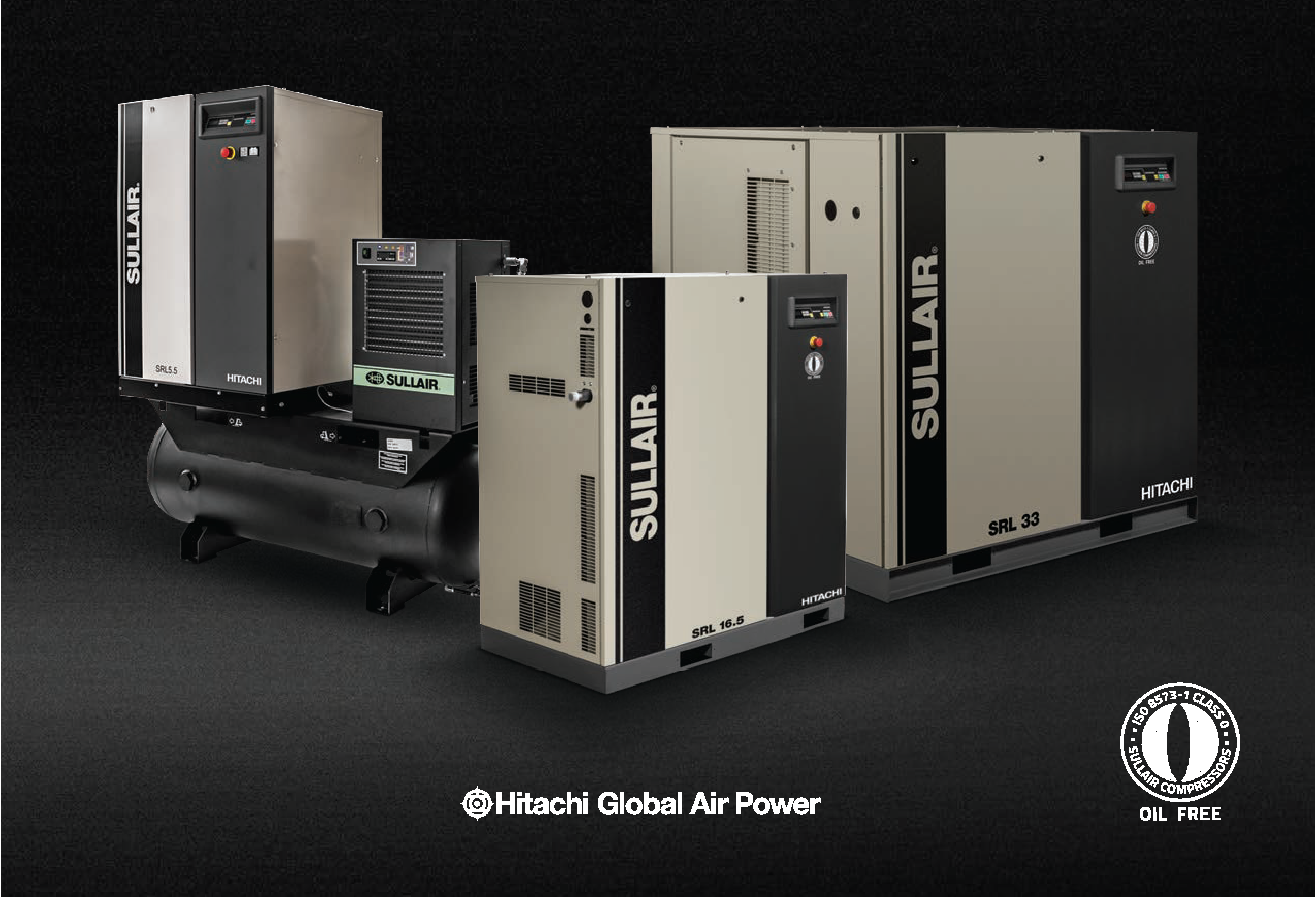

SRL Series Models & Specs
Multiplex
- SRL7.5 - 10 hp (7.5 kW), 122 - 145 psi, 30.2 cfm*
- SRL11 - 15 hp (11 kW), 122 - 145 psi, 43.1 cfm*
- SRL16.5 - 22 hp (16.5 kW), 122 - 145 psi, 64.6 cfm*
- SRL22 - 30 hp (22 kW), 122 - 145 psi, 86.2 cfm*
- SRL33 - 44 hp (33 kW), 122 - 145 psi, 129.3 cfm*
Simplex
- SRL1.5 - 2 hp (1.5 kW), 120 psi, 5.7 cfm*
- SRL2.2 - 3 hp (2.2 kW), 120 - 145 psi, 8.5 cfm*
- SRL3.7 - 5 hp (3.7 kW), 120 psi, 14.1 cfm*
- SRL5.5 - 7.5 hp (5.5 kW), 120 - 145 psi, 21.2 cfm*
